ACCENA Series – Smart Access Control Without Compromise
Smart access starts here.
All readers have the same security features:
Root of trust thanks to unique boot entry and secure hide protection area (HDP)
SFI (secure firmware installation) thanks to embedded RSS (root secure service)
Secure data storage with root hardware unique key (RHUK)
Secure firmware upgrade support with TF-M
All reader are equipped with a touch keyboard on demand, buffered RTC, an USB-C connector, 3 RGB LED signaling with an electro magnetic buzzer (tone, volume, max 85db) and a white OLED 0,87” display; OIF-sensor and an ambient light sensor.
Operating: -40 °C up to +60 °C (-40 °F up to +140 °F)
Each ACCENA product is designed to deliver clear, practical advantages in real-world environments. From seamless integration to advanced security and user-friendly access, our solutions provide measurable value for businesses of all sizes.
The treated glass can reduce the contrast of traditional powder methods and cyanoacrylate vapor deposition. That means that fingerprints are harder to take from the surface of the glass.
On roughened glass, they can “seep” into the depressions or be unevenly distributed, which smudges or breaks up the line structure.
All readers are capable to read:
HID (125Khz Prox, Hitag) and this added to its ability to read almost any modern Mifare card (Mifare Classic, Classic EV1, Mifare Ultralight Nano / EV1 / C, Mifare Plus S / SE / X / EV1, MIFARE DESFire Light, MIFARE DESFire EV1, EV2, EV3, MIFARE Mini, LEGIC Advant, HID, HID iClass, SEOS, PicoPass, iCode, Sony, FeliCA, and many more)
Powerful Benefits for Every Access Scenario

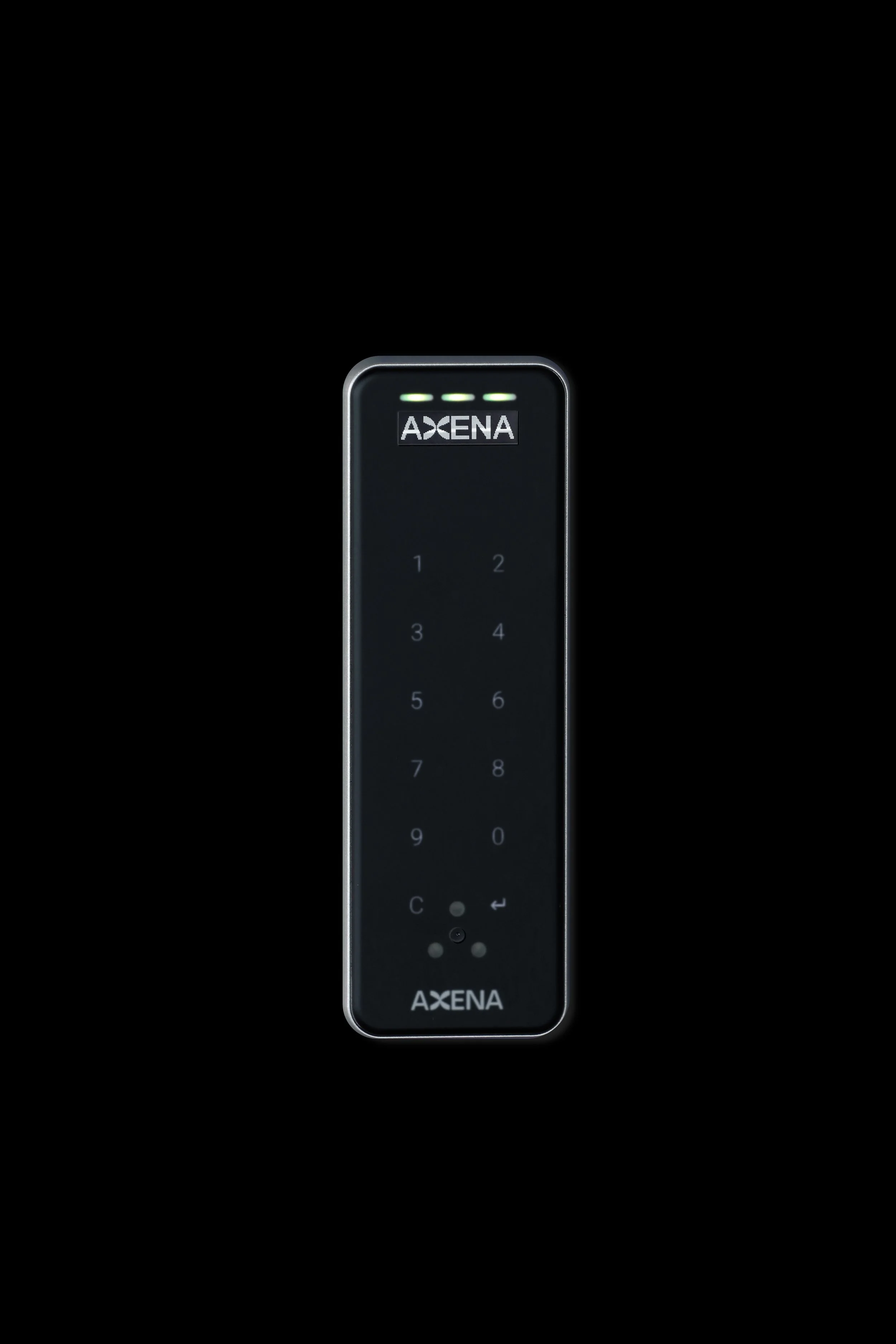

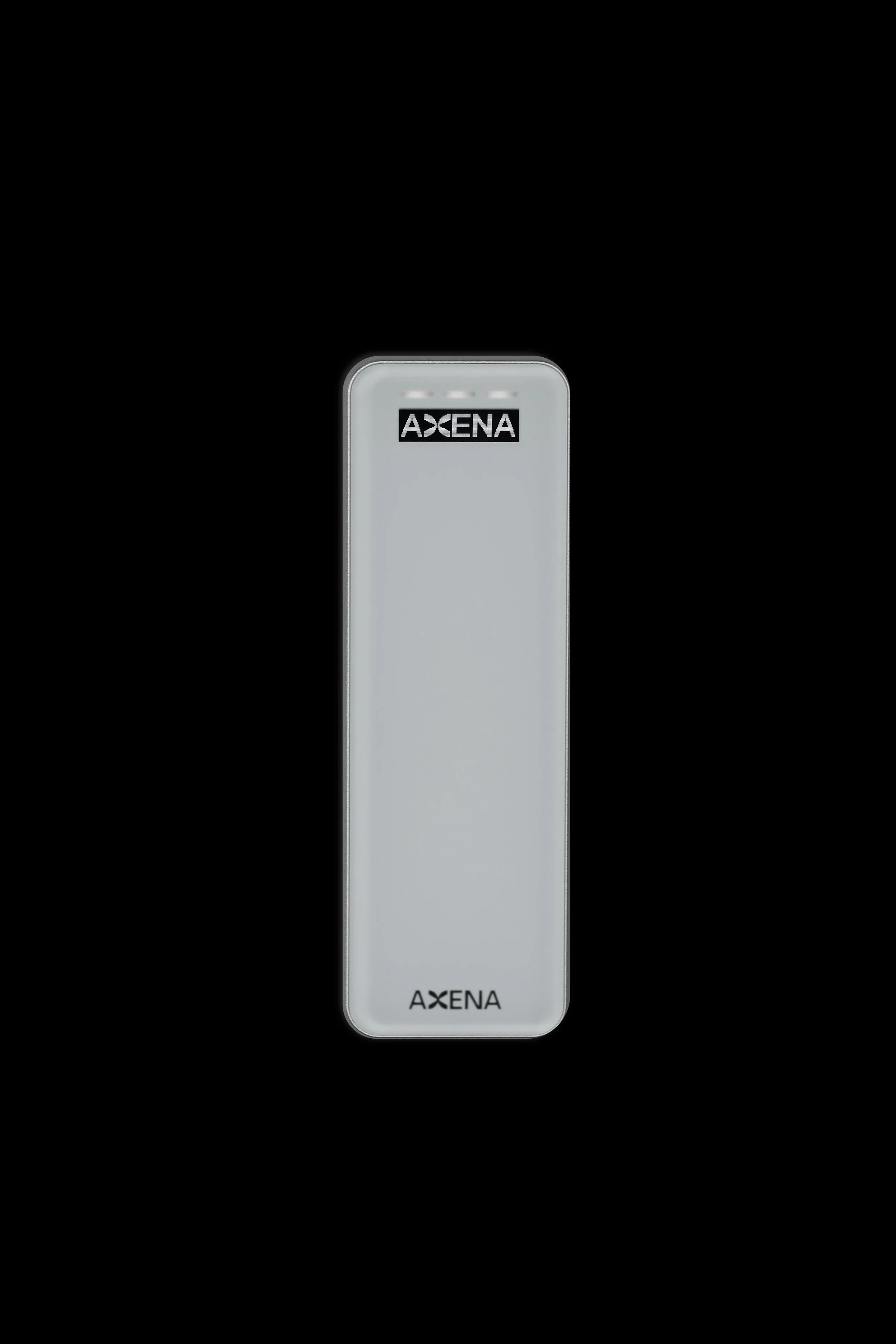

Mullion
Mullion: 45.00 x 135.00 x 8.25 mm / 1.77 x 5.31 x 0.32 inch
Wall Adapter: 44.4 x 134.4 x 10.75 / 1.74 x 5.29 x 0.42 inchAvailable in black and white with custom Logo starting from 1.000 order quantity
Options: 125 kHz Antenna; QR-Code Reader (2D(QR code, Micro QR, PDF417, Aztec), 1D( Code, 128, Code 39, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey)
Wiegand; Elektronik Relay (12-30V, 2A); WiFi, Matter, Thread, ZigBee

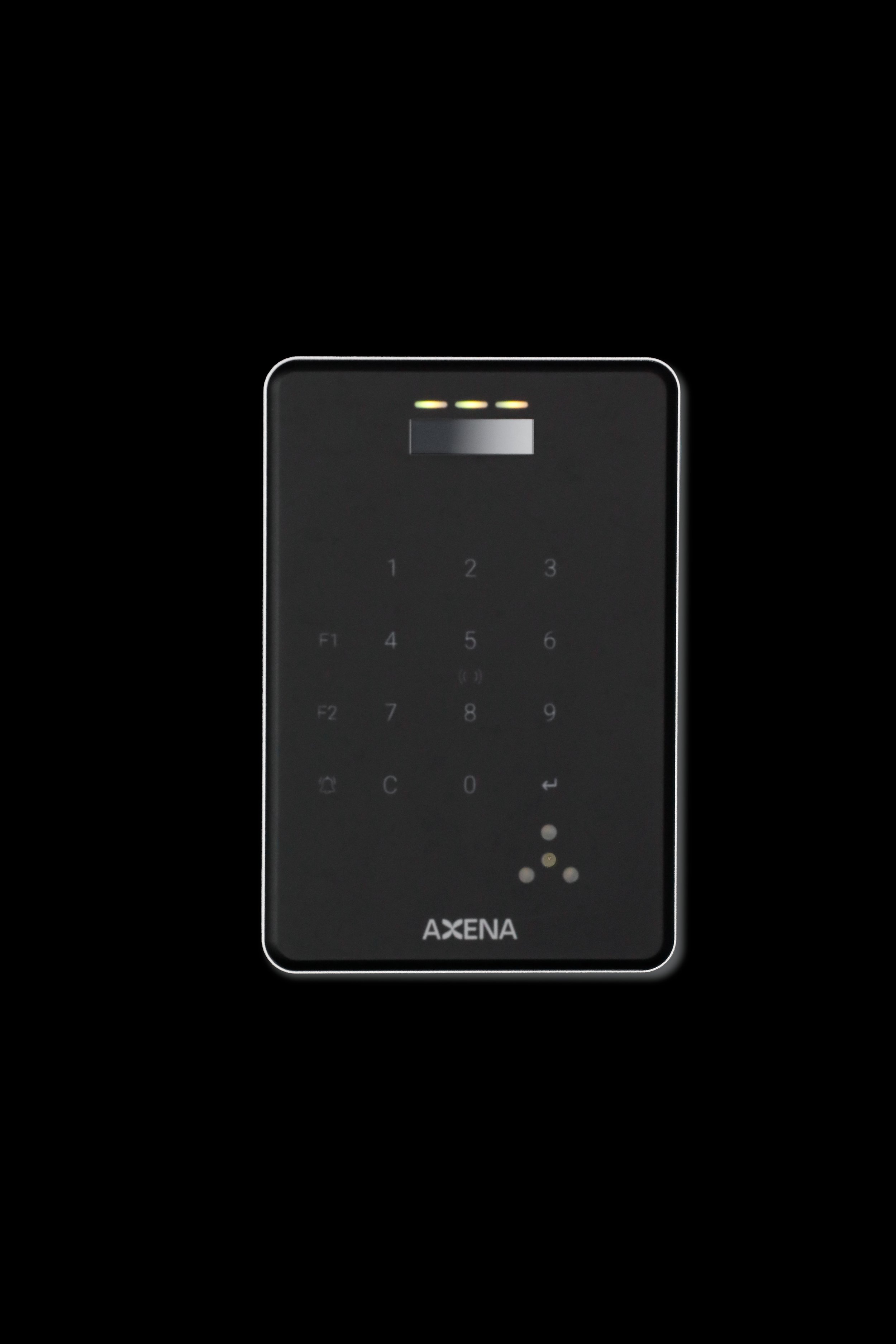

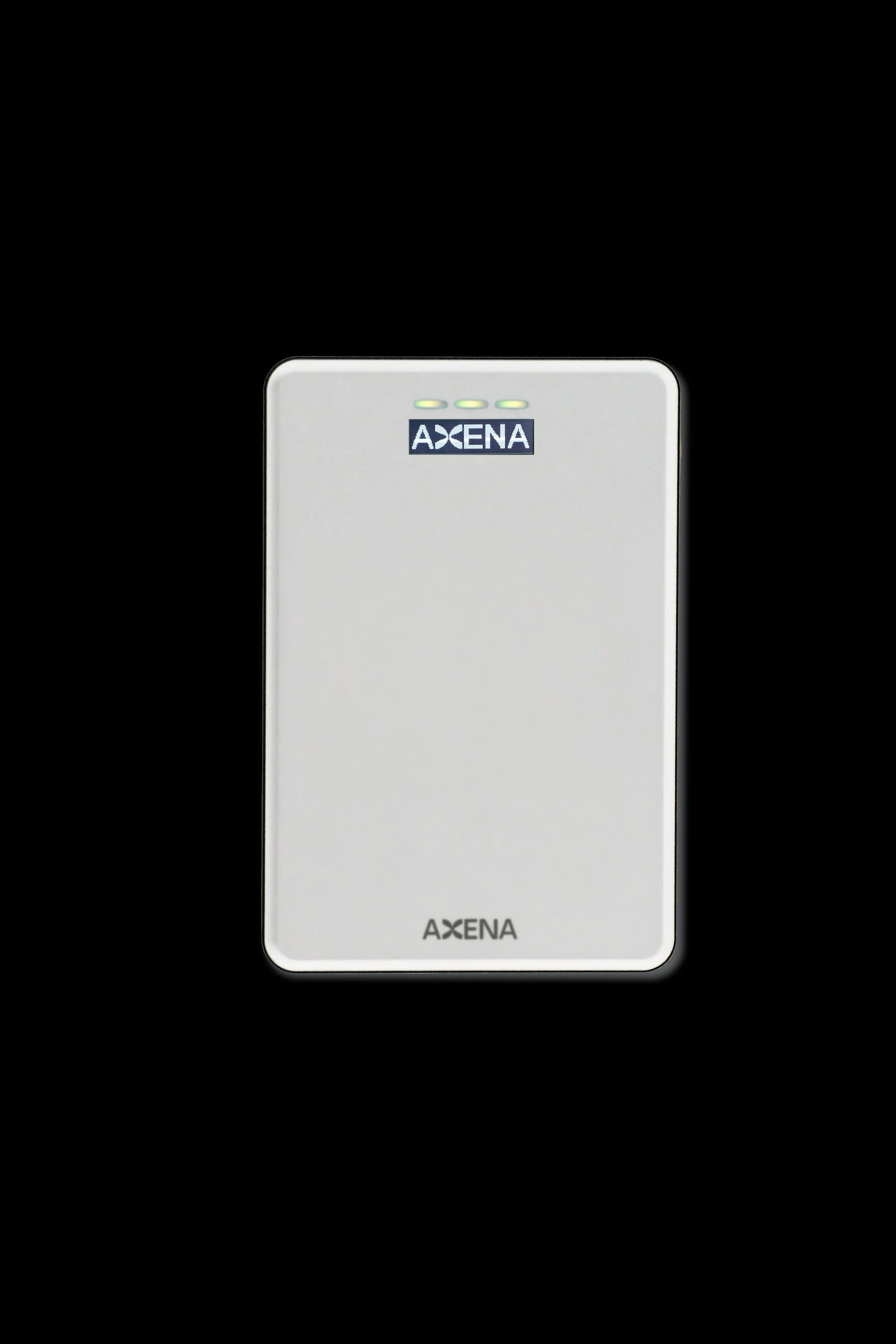

Single Gang
Single Gang: 81.37 x 119.47 x 8.25 mm / 3.20 x 4.66 x 0.42 inch
Wall Adapter: 80.28 x 118.38 x 10.75 mm / 3.16 x 4.66 x 0.42 inchAvailable in black and white with custom Logo starting from 1.000 order quantity
Options: 125 kHz Antenna; QR-Code Reader (2D(QR code, Micro QR, PDF417, Aztec), 1D( Code, 128, Code 39, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey)
Wiegand; Elektronik Relay (12-30V, 2A); PoE, Ethernet, WiFi, Matter, Thread, ZigBee

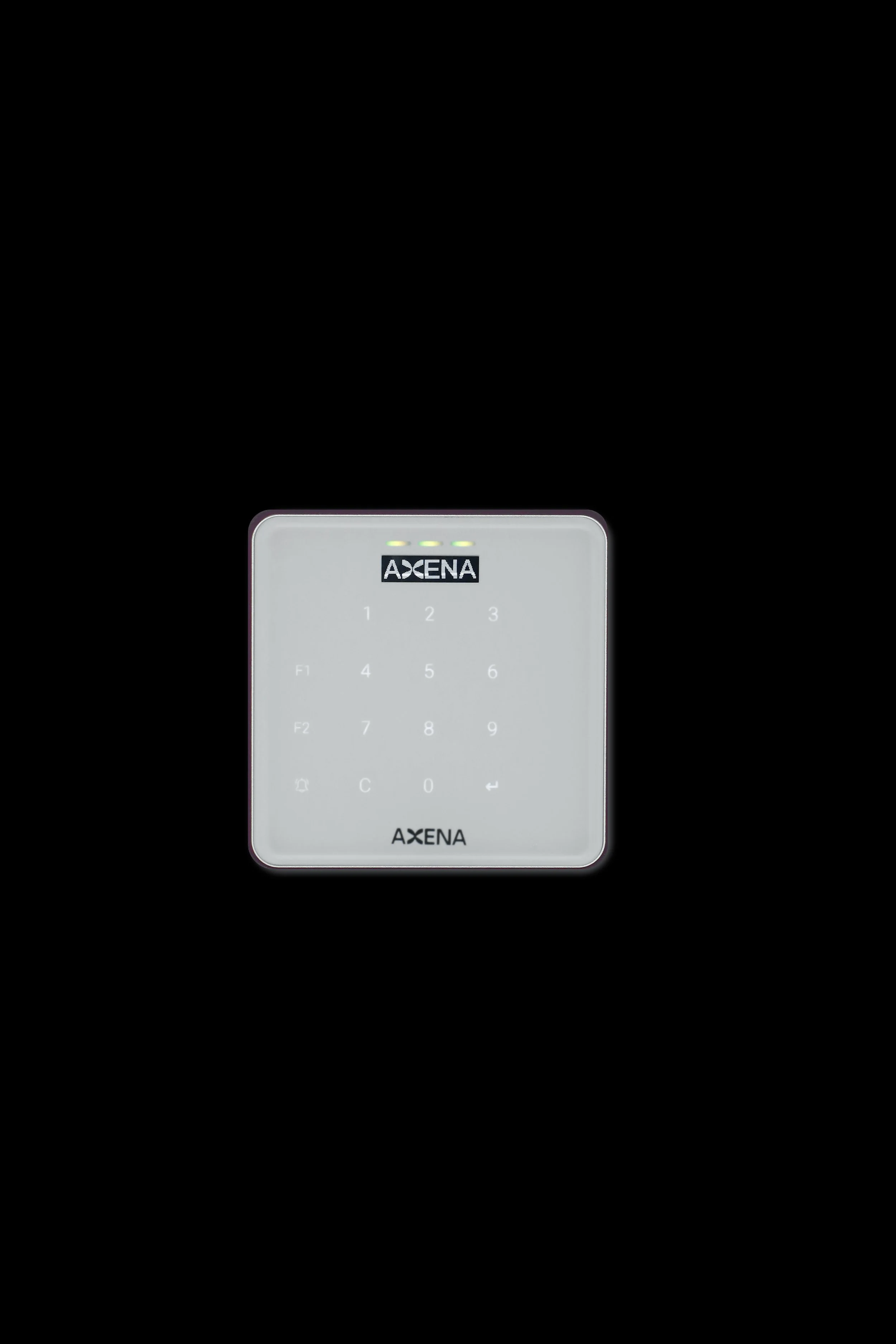

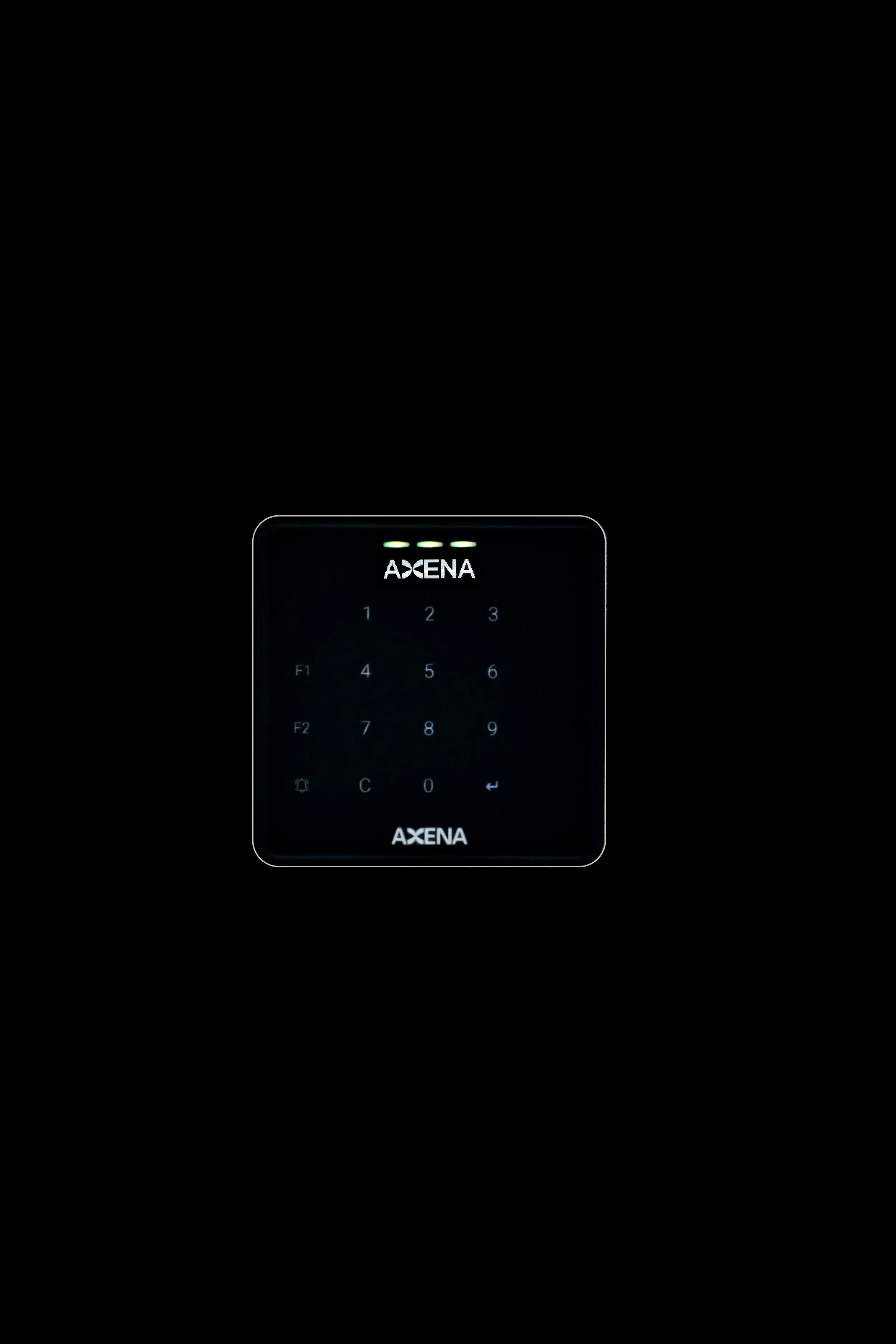

Square
Square: 87.10 x 87.10 x 8.25 mm / 3.43 x 3.43 x 0.32 inch
Wall Adapter: 86.3 x 86.3 x 10.75 mm / 3.4 x 3.4 x 0.42 inchAvailable in black and white with custom Logo starting from 1.000 order quantity
Options: 125 kHz Antenna; QR-Code Reader (2D(QR code, Micro QR, PDF417, Aztec), 1D( Code, 128, Code 39, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey)
Wiegand; Elektronik Relay (12-30V, 2A); PoE, Ethernet, WiFi, Matter, Thread, ZigBee
